Diagnostic Tools.
M-Mode
M-Mode, or Motion Mode is the display of a one-dimensional image that is used for analysing moving body parts commonly in cardiac and fetal cardiac imaging.
Pulsed Wave Doppler
Pulsed wave Doppler (PW Doppler) sends short pulses of ultrasound and analyses reflected sound waves between the pulses. It is used for recording flow velocity signals.
Pulsed-Waved Doppler is available in selected presets. Please check availability in your country. Feature availability is subject to active membership status.
OB Calcs & Fetal Heart Sounds
Tools to enable the calculation of fetal biometrics, AFI and more.

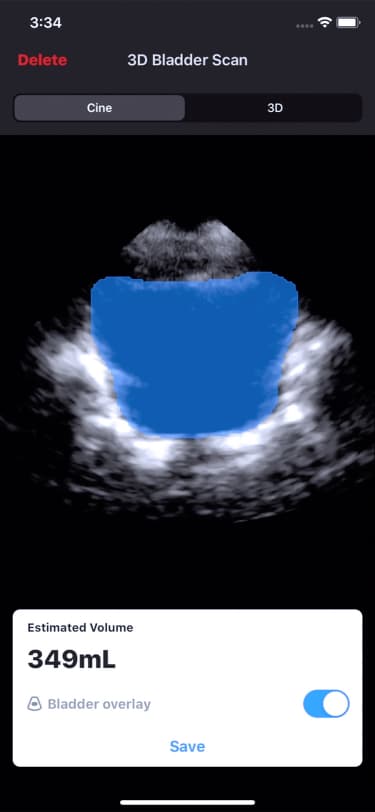

Auto Bladder Volume Calculation
Automated bladder volume calculations with 3D visualisations in seconds.
Labelling protocols
Butterfly Protocols allows the user to easily label scans of the appropriate views in the following common exams across the corresponding presets: Lung, Aorta, Cardiac, eFAST and DVT.
Auto Ejection Fraction
The Simpson's Ejection Fraction tool allows you to estimate left ventricular Ejection Fraction (EF) when capturing cardiac studies from a view of the apical four chamber. Butterfly uses the Simpson’s Monoplane method to calculate the EF.
This feature is not available on Android devices and iQ Vet.
